Guide 1 — Pond Design

Pond Size, Shape & Shelves

A practical introduction to the parts of a pond that shape how it looks, how it functions, and how Living Earth can build or renovate it.

Living Earth field perspective: Every site is different. This guide describes general principles, not a prescription for your property.

Size

Pond size is usually measured in surface area and volume. Larger volumes of water tend to be more thermally stable and can support a wider range of plants and fish. Smaller ponds can be beautiful and lower-impact, but they are more sensitive to temperature swings, debris load, and evaporation.

Living Earth field perspective: The right size depends on the available space, the surrounding landscape, what the pond is for, and how much ongoing attention it will receive. We do not recommend a specific gallonage without seeing the site.

Shape

Pond shape influences circulation, viewing angles, and how the water feature fits into the yard. Curved, irregular edges often look more natural in a garden setting. Geometric shapes can work well near patios, entries, or formal landscape areas.

A shape with dead-end pockets or sharp corners can trap debris and reduce flow. A shape with gentle curves and no isolated corners is generally easier to keep clean and circulating.

Tap or click the illustration to enlarge.

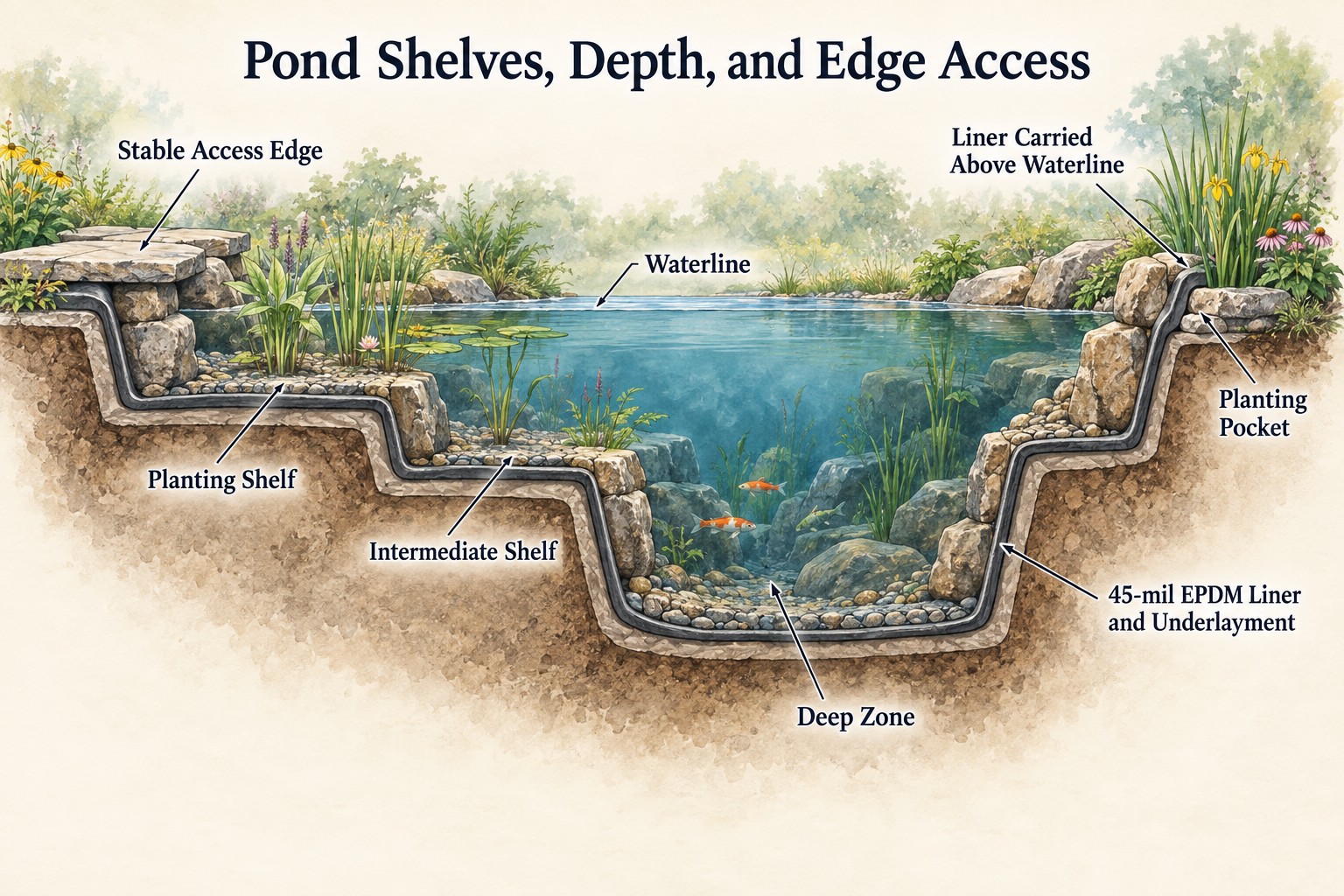

Pond shelves are formed in the excavated subgrade before the underlayment and liner are installed. Stone covers the vertical faces and rises above each flat shelf to retain its gravel.

Conceptual illustration; shelf widths, depths, access and edge treatment must respond to the pond’s purpose and site conditions.

Shelves

Shelves are horizontal ledges built into the pond walls at different depths. They serve several purposes:

  • They create planting zones for marginal and shallow-water plants.
  • They hide the liner edge and mechanical components from view.
  • They provide a place to set pots, stones, or other edge treatments.

Typical shelf widths range from a few inches for a narrow planting ledge to a foot or more for a usable step. The number and depth of shelves should match the overall pond size and the planting plan.

Edges & Access

Pond edges are not just about appearance. A well-designed edge creates manageable depth transitions, hides the liner, and allows someone to reach the water for maintenance without slipping or disturbing plantings.

Living Earth field perspective: We design edges for construction access, long-term service access, and safe interaction with the water. "Safer" does not mean safe for unsupervised children or pets; it means the edge is planned so the pond can be built, cleaned, and maintained without unnecessary risk.

Depth

Depth affects water temperature stability, fish habitat, and plant choices. Deeper water stays cooler in summer and is less likely to freeze solid in winter. Shallow water warms quickly and can be good for certain plants and for visual interest.

Living Earth field perspective: Some references suggest a four-foot depth as a general rule for koi or overwintering. On any specific site, the right depth depends on local frost line, desired fish or plant community, circulation design, and how the pond will be maintained. No depth is automatically safe for children, pets, or wildlife.

Next Steps

If you are considering a pond or water feature in Humboldt County, the next sensible step is usually a site review and conversation about goals, constraints, and options.
